Wiring

The logic 5V and miscellaneous 5V power supply for Logic 5V and miscellaneous 5V power, is designated PS1 and the dual plus and minus 15V power supply for the traction current, to operate points of turnouts and to operate decoupler solenoids, is designated PS2.

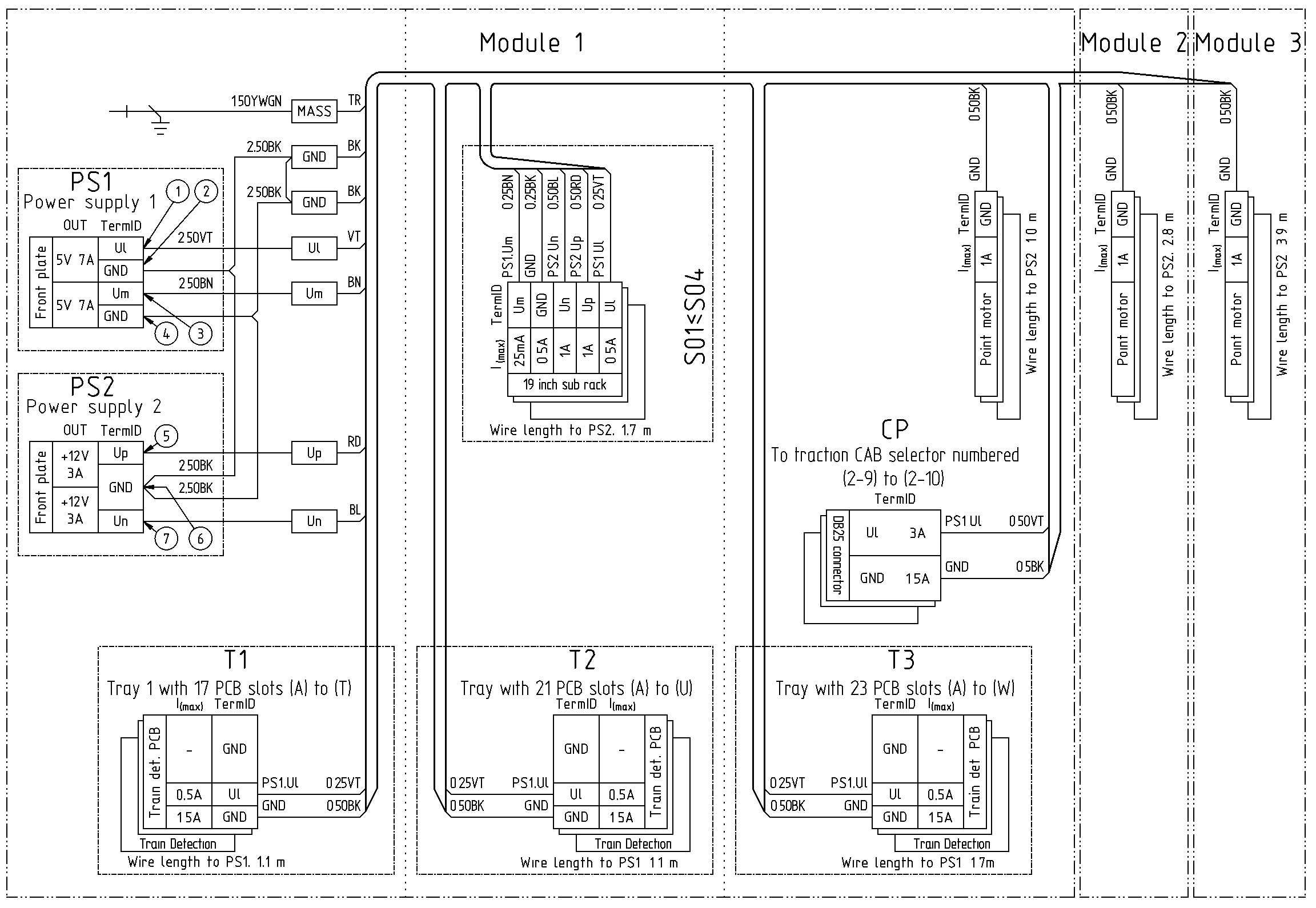

The drawing below shows the destination of the wire on one side of a wire only. This is the side of the terminals with the fewest connections. The wires and terminals of the power supply have the same colour to indicate where the wires should be connected. The colours are:

RD	Up	The positive voltage for traction, decouplers and point motors of 15 V
BL	Un	The negative voltage for traction, decouplers and point motors of 15 V
VT	Ul	The supply voltage for logic devices of 5 V
BN	Um	The supply voltage for miscellaneous devices e.g. track circuits, lights of signals, mimic panels and houses of 5 V
BK	GND	The supply voltage of 0 V, i.e. any ground wire

The wires are stranded to make them flexible and to avoid skin effect. The wires have enough over length to remove the connections and trace the wires.

The conductor size in the drawing below is given in mm².

The part list with wires and spade cable shoes is shown below.

ID	Component	Properties	Qty
0.25RD	Helukabel 26425 Strand LiYv 1 x 0.25 mm² Red	900V	7m
0.25BL	Helukabel 26423 Strand LiYv 1 x 0.25 mm² Blue	900V	7m
0.25BR	Helukabel 26424 Strand LiYv 1 x 0.25 mm² Brown	900V	9m
0.25BK	Helukabel 26421 Strand LiYv 1 x 0.25 mm² Black	900V	12m
0.25VT	Helukabel 26428 Strand LiYv 1 x 0.25 mm² Violet	900V	10m
0.50RD	Helukabel 26441 Strand LiYv 1 x 0.50 mm² Red	900V	5m
0.50BL	Helukabel 26439 Strand LiYv 1 x 0.50 mm² Blue	900V	5m
1.50BK	Helukabel 29129 Strand H07V-K 1 x 1.50 mm² Black	750V	10m
1 ≤ 4,6	U terminal 1.50 mm² 2.50 mm² Hole Ø=6.5 mm Partially insulated Blue Cimco 180148		5pcs
5, 7	U terminal 0.50 mm² 1 mm² Hole Ø=6.5 mm Partially insulated Red Cimco 180128		20pcs
